RT1052使用的以太网IP核跟飞思卡尔的K60，K70应该是同一个，为以后移植RL-TCPnet打下坚实基础

eric2013 · 发表于 2018-3-19 12:08:29

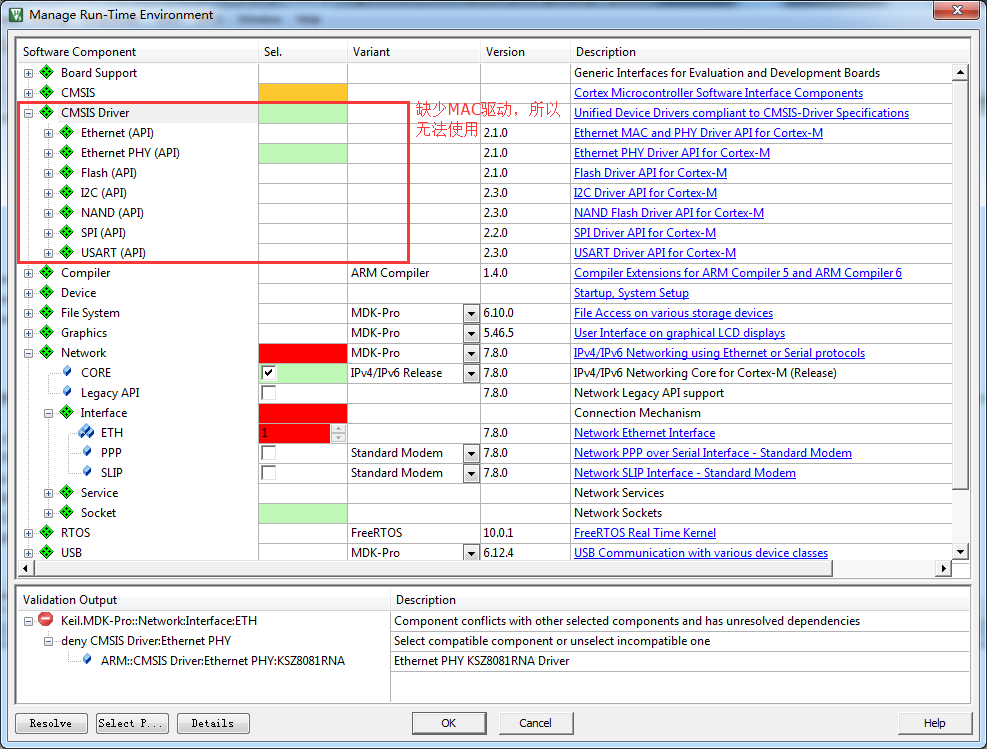

当前ARM的CMSIS-Driver未对RT1052的以太网做驱动支持，仅对I2C和SPI做了驱动。只能自己实现了，所以找了下飞思卡尔之前的系列。
下面是K60的底层MAC+KSZ8081，当前RT1052也是同样配置和外设。

/*-----------------------------------------------------------------------------
* RL-ARM - TCPnet
*-----------------------------------------------------------------------------
* Name: ENET_MK6x.C
* Purpose: Driver for Freescale MK60 Ethernet Controller
* Rev.: V4.70
*-----------------------------------------------------------------------------
* This code is part of the RealView Run-Time Library.
* Copyright (c) 2004-2013 KEIL - An ARM Company. All rights reserved.
*----------------------------------------------------------------------------*/
#include <Net_Config.h>
#include <MK60F12.H>
#include "ENET_MKxx.h"
/* The following macro definitions may be used to select the speed
of the physical link:
_10MBIT_ - connect at 10 MBit only
_100MBIT_ - connect at 100 MBit only
By default an autonegotiation of the link speed is used. This may take
longer to connect, but it works for 10MBit and 100MBit physical links. */
/* Net_Config.c */
extern U8 own_hw_adr[];
/* Local variables */
static U8 TxBufIndex;
static U8 RxBufIndex;
/* ENET local DMA Descriptors. */
static __align(16) RX_Desc Rx_Desc[NUM_RX_BUF];
static __align(16) TX_Desc Tx_Desc[NUM_TX_BUF];
/* ENET local DMA buffers. */
static U32 rx_buf[NUM_RX_BUF][ETH_BUF_SIZE>>2];
static U32 tx_buf[NUM_TX_BUF][ETH_BUF_SIZE>>2];
#define IDX(x) (x/2)
#define SWE(n) ((((n) & 0x00FF) << 8) | (((n) & 0xFF00) >> 8))
/*-----------------------------------------------------------------------------
* ENET Ethernet Driver Functions
*-----------------------------------------------------------------------------
* Required functions for Ethernet driver module:
* a. Polling mode: - void init_ethernet ()
* - void send_frame (OS_FRAME *frame)
* - void poll_ethernet (void)
* b. Interrupt mode: - void init_ethernet ()
* - void send_frame (OS_FRAME *frame)
* - void int_enable_eth ()
* - void int_disable_eth ()
* - interrupt function
*----------------------------------------------------------------------------*/
/* Local Function Prototypes */
static void rx_descr_init (void);
static void tx_descr_init (void);
static void write_PHY (U32 PhyReg, U16 Value);
static U16 read_PHY (U32 PhyReg);
/*--------------------------- init_ethernet ----------------------------------*/
void init_ethernet (void) {
/* Initialize the ETH ethernet controller. */
U32 regv,tout,id1,id2,ctrl;
OSC0->CR |= OSC_CR_ERCLKEN_MASK; /* Enable external reference clock */
SIM->SCGC2 |= SIM_SCGC2_ENET_MASK; /* Enable ENET module gate clocking */
SIM->SCGC5 |= SIM_SCGC5_PORTA_MASK | /* Enable Port A module gate clocking */
SIM_SCGC5_PORTB_MASK ; /* Enable Port B module gate clocking */
/* Configure Ethernet Pins */
PORTA->PCR[5] &= ~(PORT_PCR_MUX_MASK | PORT_PCR_PS_MASK);
PORTA->PCR[5] |= PORT_PCR_MUX(4); /* Pull-down on RX_ER is enabled */
PORTA->PCR[12] = (PORTA->PCR[12] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTA->PCR[13] = (PORTA->PCR[13] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTA->PCR[14] = (PORTA->PCR[14] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTA->PCR[15] = (PORTA->PCR[15] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTA->PCR[16] = (PORTA->PCR[16] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTA->PCR[17] = (PORTA->PCR[17] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
PORTB->PCR[0] = (PORTB->PCR[0] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4)| PORT_PCR_ODE_MASK;
PORTB->PCR[1] = (PORTB->PCR[1] & ~PORT_PCR_MUX_MASK) | PORT_PCR_MUX(4);
/* Reset Ethernet MAC */
ENET->ECR = ENET_ECR_RESET_MASK;
while (ENET->ECR & ENET_ECR_RESET_MASK);
/* Set MDC clock frequency @ 50MHz MAC clock frequency */
ENET->MSCR = ENET_MSCR_MII_SPEED(0x13);
/* Set receive control */
ENET->RCR = ENET_RCR_MAX_FL (0x5EE) |
ENET_RCR_RMII_MODE_MASK | /* MAC Configured for RMII operation */
ENET_RCR_MII_MODE_MASK ; /* This bit must always be set */
/* Set transmit control */
ENET->TCR = ENET_TCR_ADDINS_MASK | /* MAC overwrites the source MAC */
ENET_TCR_ADDSEL(0) ; /* MAC address is in PADDR 1 and 2 */
ENET->MRBR = ETH_BUF_SIZE;
/* Set thresholds */
ENET->RAEM = 4;
ENET->RAFL = 4;
ENET->TAEM = 4;
ENET->TAFL = 8;
ENET->RSFL = 0; /* Store and forward on the RX FIFO */
ENET->FTRL = 0x7FF; /* Frame Truncation Length */
/* Read PHY ID */
id1 = read_PHY (PHY_REG_ID1);
id2 = read_PHY (PHY_REG_ID2);
/* Check if this is a KSZ8041NL PHY. */
if (((id1 << 16) | (id2 & 0xFFF0)) == PHY_ID_KSZ8041) {
/* Put the PHY in reset mode */
write_PHY (PHY_REG_BCTRL, 0x8000);
/* Wait for hardware reset to end. */
for (tout = 0; tout < 0x10000; tout++) {
regv = read_PHY (PHY_REG_BCTRL);
if (!(regv & 0x8800)) {
/* Reset complete, device not Power Down. */
break;
}
}
/* Configure the PHY device */
#if defined (_10MBIT_)
/* Connect at 10MBit */
write_PHY (PHY_REG_BCTRL, PHY_FULLD_10M);
#elif defined (_100MBIT_)
/* Connect at 100MBit */
write_PHY (PHY_REG_BCTRL, PHY_FULLD_100M);
#else
/* Use autonegotiation about the link speed. */
write_PHY (PHY_REG_BCTRL, PHY_AUTO_NEG);
/* Wait to complete Auto_Negotiation. */
for (tout = 0; tout < 0x10000; tout++) {
regv = read_PHY (PHY_REG_BSTAT);
if (regv & 0x0020) {
break; /* Autonegotiation Complete */
}
}
#endif
/* Check the link status. */
for (tout = 0; tout < 0x10000; tout++) {
regv = read_PHY (PHY_REG_BSTAT);
if (regv & 0x0004) {
break; /* Link is on */
}
}
/* Check Operation Mode Indication in PHY Control register */
regv = read_PHY (PHY_REG_PC2);
/* Configure Full/Half Duplex mode. */
switch ((regv & 0x001C) >> 2) {
case 1: ctrl = PHY_CON_10M | PHY_CON_HD; break;
case 2: ctrl = PHY_CON_100M | PHY_CON_HD; break;
case 5: ctrl = PHY_CON_10M | PHY_CON_FD; break;
case 6: ctrl = PHY_CON_100M | PHY_CON_FD; break;
default: ctrl = 0; break;
}
if (ctrl & PHY_CON_FD) {
ENET->TCR |= ENET_TCR_FDEN_MASK; /* Enable Full duplex */
}
/* Configure 100MBit/10MBit mode. */
if (ctrl & PHY_CON_100M) {
ENET->RCR &= ~ENET_RCR_RMII_10T_MASK; /* 100MBit mode. */
}
}
/* MAC address filtering, accept multicast packets. */
/* Set the Ethernet MAC Address registers */
ENET->PAUR = ENET_PAUR_TYPE (0x8808) |
ENET_PAUR_PADDR2(((U32)own_hw_adr[4] << 8) | (U32)own_hw_adr[5]);
ENET->PALR = ((U32)own_hw_adr[0] << 24) | (U32)own_hw_adr[1] << 16 |
((U32)own_hw_adr[2] << 8) | (U32)own_hw_adr[3];
ENET->MIBC |= ENET_MIBC_MIB_CLEAR_MASK;
/* Initialize Tx and Rx DMA Descriptors */
rx_descr_init ();
tx_descr_init ();
/* Reset all interrupts */
ENET->EIR = 0x7FFF8000;
/* Enable receive interrupt */
ENET->EIMR = ENET_EIMR_RXF_MASK;
/* Enable Ethernet, reception and transmission are possible */
ENET->ECR |= ENET_ECR_EN1588_MASK | ENET_ECR_ETHEREN_MASK;
/* Start MAC receive descriptor ring pooling */
ENET->RDAR = ENET_RDAR_RDAR_MASK;
}
/*--------------------------- int_enable_eth ---------------------------------*/
void int_enable_eth (void) {
/* Ethernet Interrupt Enable function. */
NVIC_EnableIRQ (ENET_Receive_IRQn);
}
/*--------------------------- int_disable_eth --------------------------------*/
void int_disable_eth (void) {
/* Ethernet Interrupt Disable function. */
NVIC_DisableIRQ (ENET_Receive_IRQn);
}
/*--------------------------- send_frame -------------------------------------*/
void send_frame (OS_FRAME *frame) {
/* Send frame to ETH ethernet controller */
U32 *sp,*dp;
U32 i,j, adr;
j = TxBufIndex;
/* Wait until previous packet transmitted. */
while (Tx_Desc[j].TBD[IDX(0)] & SWE(DESC_TX_R));
adr = SWE(Tx_Desc[j].TBD[IDX(4)]) << 16;
adr |= SWE(Tx_Desc[j].TBD[IDX(6)]);
dp = (U32 *)(adr & ~3);
sp = (U32 *)&frame->data[0];
/* Copy frame data to ETH IO buffer. */
for (i = (frame->length + 3) >> 2; i; i--) {
*dp++ = *sp++;
}
Tx_Desc[j].TBD[IDX(2)] = SWE(frame->length);
Tx_Desc[j].TBD[IDX(0)] |= SWE(DESC_TX_R | DESC_TX_L | DESC_TX_TC);
Tx_Desc[j].TBD[IDX(0x10)] = 0;
if (++j == NUM_TX_BUF) j = 0;
TxBufIndex = j;
/* Start frame transmission. */
ENET->TDAR = ENET_TDAR_TDAR_MASK;
}
/*--------------------------- interrupt_ethernet -----------------------------*/
void ENET_Receive_IRQHandler (void) {
OS_FRAME *frame;
U32 i, adr, RxLen;
U32 *sp,*dp;
i = RxBufIndex;
do {
if (Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_TR)) {
/* Frame is truncated */
goto rel;
}
RxLen = SWE(Rx_Desc[i].RBD[IDX(2)]);
if (Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_L)) {
/* Last in a frame, length includes CRC bytes */
RxLen -= 4;
if (Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_OV)) {
/* Receive FIFO overrun */
goto rel;
}
if (Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_NO)) {
/* Received non-octet aligned frame */
goto rel;
}
if (Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_CR)) {
/* CRC or frame error */
goto rel;
}
}
if (RxLen > ETH_MTU) {
/* Packet too big, ignore it and free buffer. */
goto rel;
}
/* Flag 0x80000000 to skip sys_error() call when out of memory. */
frame = alloc_mem (RxLen | 0x80000000);
/* if 'alloc_mem()' has failed, ignore this packet. */
if (frame != NULL) {
adr = SWE(Rx_Desc[i].RBD[IDX(4)]) << 16;
adr |= SWE(Rx_Desc[i].RBD[IDX(6)]);
sp = (U32 *)(adr & ~3);
dp = (U32 *)&frame->data[0];
for (RxLen = (RxLen + 3) >> 2; RxLen; RxLen--) {
*dp++ = *sp++;
}
put_in_queue (frame);
}
/* Release this frame from ETH IO buffer. */
rel:Rx_Desc[i].RBD[IDX(0)] |= SWE(DESC_RX_E);
Rx_Desc[i].RBD[IDX(0x10)] = 0;
if (++i == NUM_RX_BUF) i = 0;
RxBufIndex = i;
}
while (!(Rx_Desc[i].RBD[IDX(0)] & SWE(DESC_RX_E)));
RxBufIndex = i;
/* Clear pending interrupt bits */
ENET->EIR = ENET_EIR_RXB_MASK | ENET_EIR_RXF_MASK;
/* Start MAC receive descriptor ring pooling */
ENET->RDAR = ENET_RDAR_RDAR_MASK;
}
/*--------------------------- rx_descr_init ----------------------------------*/
static void rx_descr_init (void) {
/* Initialize Receive DMA Descriptor array. */
U32 i,next;
RxBufIndex = 0;
for (i = 0, next = 0; i < NUM_RX_BUF; i++) {
if (++next == NUM_RX_BUF) next = 0;
Rx_Desc[i].RBD[IDX(0x00)] = SWE(DESC_RX_E);
Rx_Desc[i].RBD[IDX(0x04)] = SWE((U32)&rx_buf[i] >> 16);
Rx_Desc[i].RBD[IDX(0x06)] = SWE((U32)&rx_buf[i] & 0xFFFF);
Rx_Desc[i].RBD[IDX(0x08)] = SWE(DESC_RX_INT);
Rx_Desc[i].RBD[IDX(0x10)] = 0;
}
Rx_Desc[i-1].RBD[IDX(0)] |= SWE(DESC_RX_W);
ENET->RDSR = (U32)&Rx_Desc[0];
}
/*--------------------------- tx_descr_init ----------------------------------*/
static void tx_descr_init (void) {
/* Initialize Transmit DMA Descriptor array. */
U32 i,next;
TxBufIndex = 0;
for (i = 0, next = 0; i < NUM_TX_BUF; i++) {
if (++next == NUM_TX_BUF) next = 0;
Tx_Desc[i].TBD[IDX(0x00)] = SWE(DESC_TX_L);
Tx_Desc[i].TBD[IDX(0x04)] = SWE((U32)&tx_buf[i] >> 16);
Tx_Desc[i].TBD[IDX(0x06)] = SWE((U32)&tx_buf[i] & 0xFFFF);
Tx_Desc[i].TBD[IDX(0x10)] = 0;
}
Tx_Desc[i-1].TBD[IDX(0x00)] |= SWE(DESC_TX_W);
ENET->TDSR = (U32)&Tx_Desc[0];
}
/*--------------------------- write_PHY --------------------------------------*/
static void write_PHY (U32 PhyReg, U16 Value) {
/* Write a data 'Value' to PHY register 'PhyReg'. */
U32 tout;
/* Clear MII Interrupt */
ENET->EIR = ENET_EIR_MII_MASK;
/* Send MDIO write command */
ENET->MMFR = ENET_MMFR_ST (1) |
ENET_MMFR_OP (1) |
ENET_MMFR_PA (PHY_DEF_ADDR) |
ENET_MMFR_RA (PhyReg) |
ENET_MMFR_TA (2) |
ENET_MMFR_DATA (Value) ;
/* Wait until operation completed */
tout = 0;
for (tout = 0; tout < MII_WR_TOUT; tout++) {
if (ENET->EIR & ENET_EIR_MII_MASK) {
break;
}
}
}
/*--------------------------- read_PHY ---------------------------------------*/
static U16 read_PHY (U32 PhyReg) {
/* Read a PHY register 'PhyReg'. */
U32 tout;
/* Clear MII Interrupt */
ENET->EIR = ENET_EIR_MII_MASK;
/* Send MDIO read command */
ENET->MMFR = ENET_MMFR_ST (1) |
ENET_MMFR_OP (2) |
ENET_MMFR_PA (PHY_DEF_ADDR) |
ENET_MMFR_RA (PhyReg) |
ENET_MMFR_TA (2) ;
/* Wait until operation completed */
tout = 0;
for (tout = 0; tout < MII_RD_TOUT; tout++) {
if (ENET->EIR & ENET_EIR_MII_MASK) {
break;
}
}
return (ENET->MMFR & ENET_MMFR_DATA_MASK);
}
/*-----------------------------------------------------------------------------
* End of file
*----------------------------------------------------------------------------*/

复制代码

eric2013 · 发表于 2018-3-19 12:34:29

wuhaichuan · 发表于 2018-3-19 14:44:43

速度好快到以太网了是不是马上能开买了

eric2013 · 发表于 2018-3-19 15:19:33

wuhaichuan 发表于 2018-3-19 14:44
速度好快到以太网了是不是马上能开买了

没，还不知道RT1052芯片长什么样子，我现在只是把软件准备好

		自动登录	找回密码
密码			立即注册

[网络] RT1052使用的以太网IP核跟飞思卡尔的K60，K70应该是同一个，为以后移植RL-TCPnet打下坚实基础

浏览过的版块
